35M2 MBR Membrane Elements for Wastewater Treatment with PVDF material

Hot Sales MBR Membrane Modules for Wastewater Treatment with PVDF material

MBR Introduction

Membrane bioreactor (MBR) is a combination of membrane processes like microfiltration or ultrafiltration with a biological wastewater treatment process, the activated sludge process. It is now widely used for municipal and industrial wastewater treatment. The two basic MBR configurations are a submerged membrane bioreactor (SMBR), and a side stream membrane bioreactor. In the SMBR configuration, the membrane is located inside the biological reactor and submerged in the wastewater, while in a side stream membrane bioreactor, the membrane is located outside the reactor, as an additional step after biological treatment.

Membrane bioreactor technology is a future-proof solution for treatment of both municipal and industrial wastewater. It allows you to maximize resource recovery, minimize costs and implement a circular-economy perspective in your operations. Alfa Laval’s membrane modules for bioreactors bring together the advantages of hollow fibre and flat sheet technologies. With our MBR membranes, you get trouble-free wastewater treatment at a low operating cost.

3. Technical Parameter of Membrane Module

2. Typical parameters of MBR units.

4.. Structure of Membrane Modules and Frames:

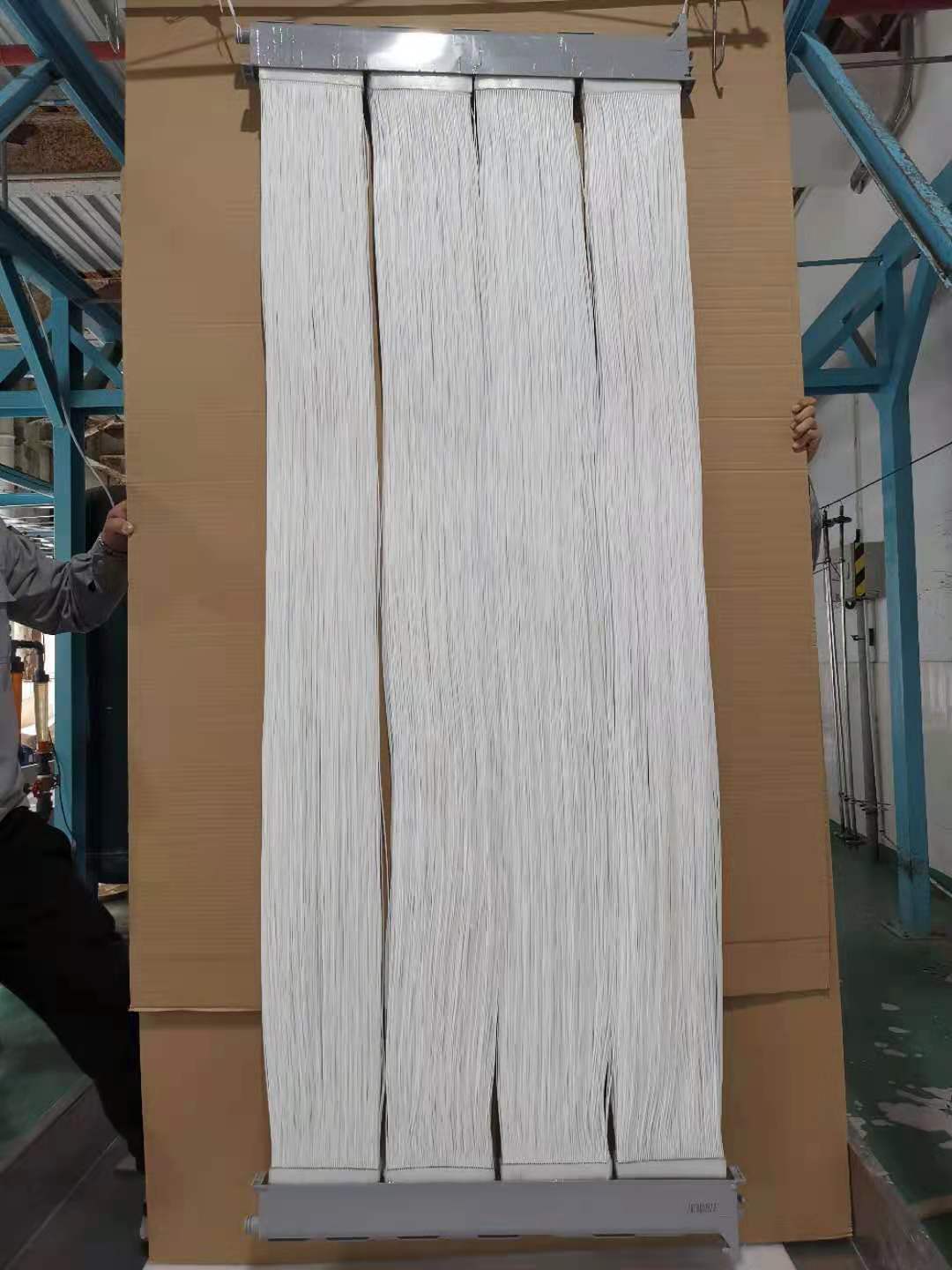

A. Structure of MBR Modules

B.Structure of MBR Frames

5. Product Features

-- All the frames are made of SS 304 or SS 316 stainess steel with reliable frames.

-- Every modules can be pulled out or putted in very conveniently for they are installed into UPVC Groove from top to bottom.

-- Every modules have flexible tubes connecting to collecting pipes.

-- Every modules have independent air blowing tube. There are additional air-blowing tube at the bottom of the frames.

-- All the modules have an added patented design air blowing tube to enhance the efficiency of the air blowing onto the membrane surface.

-- Permanent Hydrobility Membrane

-- Strong strength, the broken strength more than 50MPa

6. Application of MBR Units:

The whole installation and application process of our MBR modules are described as the following photo:

A. MBR unit of KH-MBRMD-8×8-CO-PVDF with total membrane area of 64 m2/unit.

B. MBR unit of KH-MBRMD-15×60-CO-PVDF with total membrane area of 840 m2/unit.

Why Choose US?

1). Over 20 years experience in UF and MBR membrane
2). Excellent cooperation partner
3). Own an excellent technical team
4). Advanced R & D capability
5). International management system(ISO9001)
6). Located in Jiangsu, convenient for export transportation.

Our Service

1). MBR membrane technical consulting,
2). MBR membrane application engineering design,
3). MBR system manufacturing, installation and commissioning,
4). Different membrane dimension, material like PP, PVDF etc.,can be customize according to your requirements
5). 12 months warranty

We,Hangzhou Kaihong Membrane Technology Co.,Ltd, is established on the year of 2003. We specializes in manufacturing UF and MBR membrane modules. We own more than 20 years of experience for the applying of UF and MBR membrane modules. Our products have been used in more than 1000 water treatment plants. We also have more than 2000 customers all over the world.

We have R&D team to develop new products and new separating technology for ourselves. We also have quality controlling system to ensure our products. At present our main products are made of PSF/PP/PVDF. We have hollow fiber membranes and flat sheet membranes for MBR systems. So we can meet different requirements for wastewater treatment and water purification.
