Flat MBR SS304 Rack Bio Reactor for Sewage Treatment with PVDF material 0.1um pore size

Flat Sheet Membrane

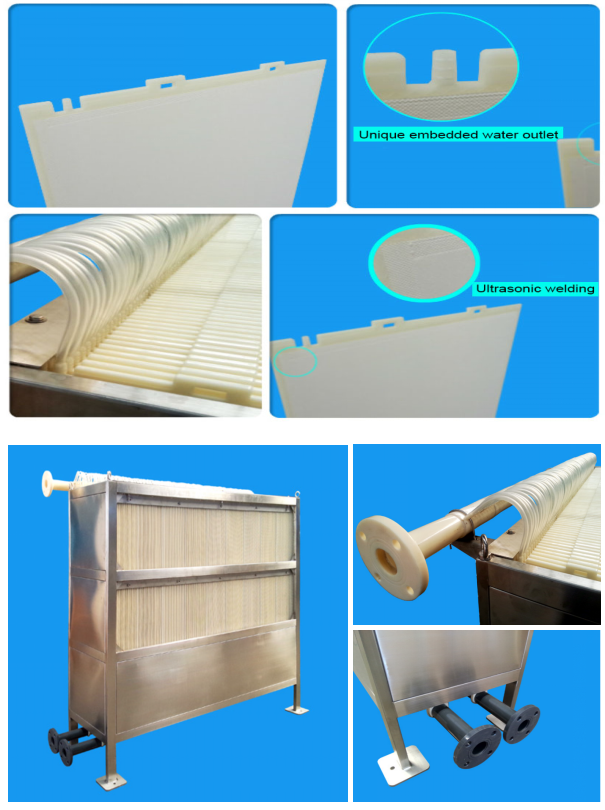

1.Membrane Box

To collect the filterd water form MBR system

Flat sheet membrane component: core product to filter watewater.

Water outlet hose: to connect water outlet spout of each membrane with water collection pipe

Water coooection pipe: to collect filtered water.

2. Aeration Box:

Main Function: to keep scouring for anti-pollution and provide oxygen for the microorganism in MBR tank

MBR technology enhances wastewater treatment efficiency

• Using membranes to separate sludge ensures much higher quality for treated water free from suspended solids.
• Membranes can retain activated sludge at high concentrations, allowing BOD as well as nitrogen to be removed more efficiently.
• Unique membrane configuration can confirm a higher water permeability with minimal clogging and higher permeated water quality.

Smaller occupation of Land

• The module can be submerged directly in an activated sludge tank for combining biological treatment and membrane separation. It eliminates the sedimentation or sludge concentration process.
• More effective biological treatment allows activated sludge tank size to be reduced.

Brief Process of MBR technology for waste water treatment:

2. Description of CNKHONG Flat Sheet MBR Modules

CNKHONG Submerged Flat Sheet Membrane module configuration comprises an element block and an aeration block. The element block contains a number of membrane elements stacked at equal intervals, each of which has flat sheet membranes attached on both sides of a supporting panel. Each element is connected via a tube to a permeated water manifold. The aeration block consists of air diffusers used to supply air.

2.1 Module Features

Guaranteed high water permeability and high effluent quality

• Many 0.08 micron pores on the membrane surface effectively eliminate 0.1 micron+ particles to improve effluent quality.
• Uniform pore size results in consistently high permeability with minimal pore clogging.

Unique membrane structure

Numerous small-diameter pores are distributed evenly throughout the membrane surface with a narrow diameter distribution. This structure ensures higher treated water quality and minimizes membrane fouling and pore clogging for consistently high water permeability.

Better membrane materials

Using PVDF (polyvinylidene fluoride) for the functional layer of the membrane and PET (polyester) non-woven fabric as the base layer allows the membrane to exhibit superior physical strength and chemical stability.

Flat sheet type membrane with modified surface nature

The membrane has a simple flat sheet configuration. This configuration and the modified membrane surface nature allow very effective cleaning by a stream of water generated upward as scouring air is diffused below it. This mechanism provides extremely stable filtration as the membrane does not allow sludge to adhere to its surface.

Product Description

Membrane Bioreactor MBR sheet (pcs.)

Module*(All customized models are available by online inquiry)

We,Hangzhou Kaihong Membrane Technology Co.,Ltd, is established on the year of 2003. We specializes in manufacturing UF and MBR membrane modules. We own more than 20 years of experience for the applying of UF and MBR membrane modules. Our products have been used in more than 1000 water treatment plants. We also have more than 2000 customers all over the world.

We have R&D team to develop new products and new separating technology for ourselves. We also have quality controlling system to ensure our products. At present our main products are made of PSF/PP/PVDF. We have hollow fiber membranes and flat sheet membranes for MBR systems. So we can meet different requirements for wastewater treatment and water purification.
