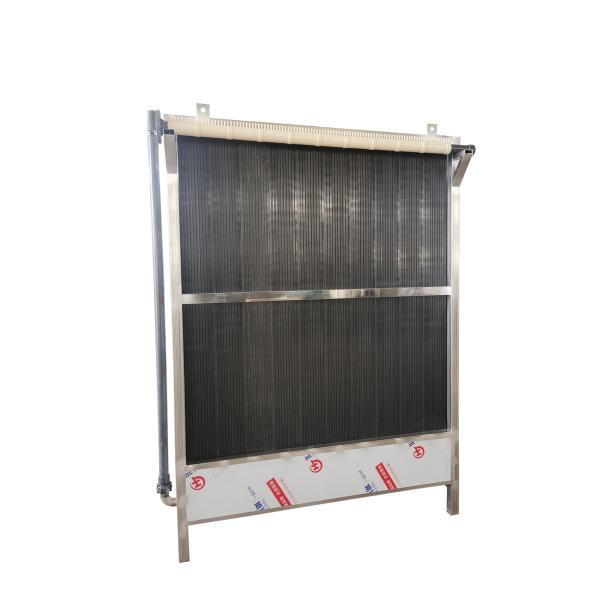

Flat Sheet Membrane for Sewage Treatment with PTFE material 0.1um Pore Size
Flat Sheet Membrane
A flat sheet membrane is a thin, flexible, and porous material used in filtration and separation processes. It consists of a flat sheet of polymer material, such as polyethersulfone (PES), polyvinylidene fluoride (PVDF), or polyamide (PA), with a micro- or ultrafiltration layer on one or both sides. The membrane can have various pore sizes, ranging from a few nanometers to a few micrometers, depending on the application.
Flat sheet membranes are commonly used in industrial applications such as water treatment, food and beverage processing, pharmaceutical production, and biotechnology. They can be used for liquid filtration, gas separation, and membrane-based separations, such as reverse osmosis, nanofiltration, and ultrafiltration.
The advantages of using flat sheet membranes include high selectivity, high flux rates, and easy scalability. They are also easy to maintain and replace, making them a cost-effective solution for many separation applications.
Features:
There are several advantages of using flat sheet membranes in filtration and separation processes, including:
High selectivity: Flat sheet membranes can effectively remove contaminants and impurities from liquids and gases with high selectivity, allowing for the production of high-quality products.
High flux rates: The thin and porous structure of flat sheet membranes allows for a high flux rate, meaning that a large volume of liquid or gas can be processed in a short amount of time.
Easy scalability: Flat sheet membranes can be easily scaled up or down to meet the needs of different applications, making them versatile and adaptable to a range of industrial processes.
Cost-effective: Flat sheet membranes are typically less expensive than other membrane types, making them a cost-effective solution for many separation applications.
Easy to maintain and replace: Flat sheet membranes are easy to clean and replace, which can help reduce downtime and maintenance costs in industrial processes.
Environmentally friendly: Flat sheet membranes can help reduce waste and pollution in industrial processes by effectively removing contaminants and impurities from liquids and gases.
Membrane Bioreactor MBR sheet (pcs.)
| Items | Standard type | Long type |
| Model | KH-MBRP-80-PVDF | KH-MBRP-150-PVDF |
| Size (LxWxT) | 1000×490×7 | 1750×510×7 |
| Membrane effective area (m²) | 0.8 | 1.5 |
| Weight (kg) | 3 | 4.5 |
| Permeate flux [L/ (pc.d)] | 320-480 | 600-900 |
| Membrane material | PTFE | PTFE |
| Membrane pore size (μm) | 0.1 | 0.1 |
| Plate material | ABS | ABS |
| Air flow rate [L/(min.pc)] | ≥ 10 | ≥ 12 |
| pH | 2 ~ 13 | 2 ~ 13 |
| Output turbidity (NTU) | < 1.0 | < 1.0 |
| Output SS (mg/1) | ≤ 1.0 | ≤ 1.0 |
| Chemical cleaning | ~ 5,000mg/1 NaCIO | ~ 5,000mg/1 NaCIO |
Module*(All customized models are available by online inquiry)
| Membrane Module | KH-MBRP80-120 | KH-MBRP80-100 | KH-MBRP150-120 | KH-MBRP150-150 |
| Flux(m3/d) | 30-50 | 25-40 | 60-90 | 75-110 |
| Number of membrane elements (pcs.) | 120 | 100 | 120 | 150 |
| Membrane effective area (m²) | 96 | 80 | 180 | 225 |
| Size (LxWxT)(mm) | 1900×600×1700 | 1600×600×1700 | 1900×630×2500 | 2350×630×2500 |
| Frame material | SUS304 | |||
| Plate material | ABS | |||
|
|
